From: $2290

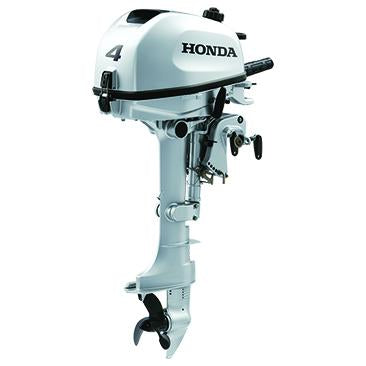

The all new BF4 is amazingly lightweight, easy to start, quiet and portable.
| ENGINE |
| TYPE |
4-stroke OHV 1-cylinder / 2-valves |
| DISPLACEMENT |
127cc |
| BORE & STROKE |
60 x 45 mm |
| FULL THROTTLE RPM RANGE |
4,000-5,000 RPM |
| RATED POWER |
4HP @ 5,500 RPM (2.9KW) |
| COOLING SYSTEM |
Water Cooled |
| INDUCTION |
1 carburettor |
| IGNITION SYSTEM |
Digital CDI |
| STARTING SYSTEM |
Recoil |
| EXHAUST |
Under Water, Above Propeller |
| ALTERNATOR |
- |
| POWER TRIM & TILT |
- |
| GAS-ASSISTED TILT |
- |
| TRIM RANGE |
5-stage 4° - 8° - 12° - 16° - 20° |
| TILT RANGE |
70° |
| SAFETY FEATURES |
| EMERGENCY STOP SWITCH |
Standard |
| OIL PRESSURE ALERT |
Standard |
| TEMPERATURE ALERT |
- |
| REV-LIMITER |
Standard |
| SPEEDOMETER PICKUP |
- |
| DRIVE |
| GEAR RATIO |
2.08:1 |
| GEAR SHIFT |
F-N-R |
| PROPELLER |
5 Model Available |
| DIAMETER X PITCH (S-TYPE) |
7-7/8 x 7 1/2 inches |
| DIAMETER X PITCH (L-TYPE) |
7-7/8 x 7 1/2 inches |
| DIAMETER X PITCH (X-TYPE) |
- |
| DIMENSIONS |
| OVERALL LENGTH |
524mm |
| OVERALL WIDTH |
347mm |
| OVERALL HEIGHT (S-TYPE) |
1,020mm |
| OVERALL HEIGHT (L-TYPE) |
1,147mm |
| OVERALL HEIGHT (X-TYPE) |
- |
| TRANSOM HEIGHT (S-TYPE) |
434mm |
| TRANSOM HEIGHT (L-TYPE) |
561mm |
| TRANSOM HEIGHT (X-TYPE) |
- |
| DRY WEIGHTS (KG) |
27kg |
